Original 2.5mm Pitch 2-pin Cable Matching Pair – JST XH compatible – PartsCountry

Description

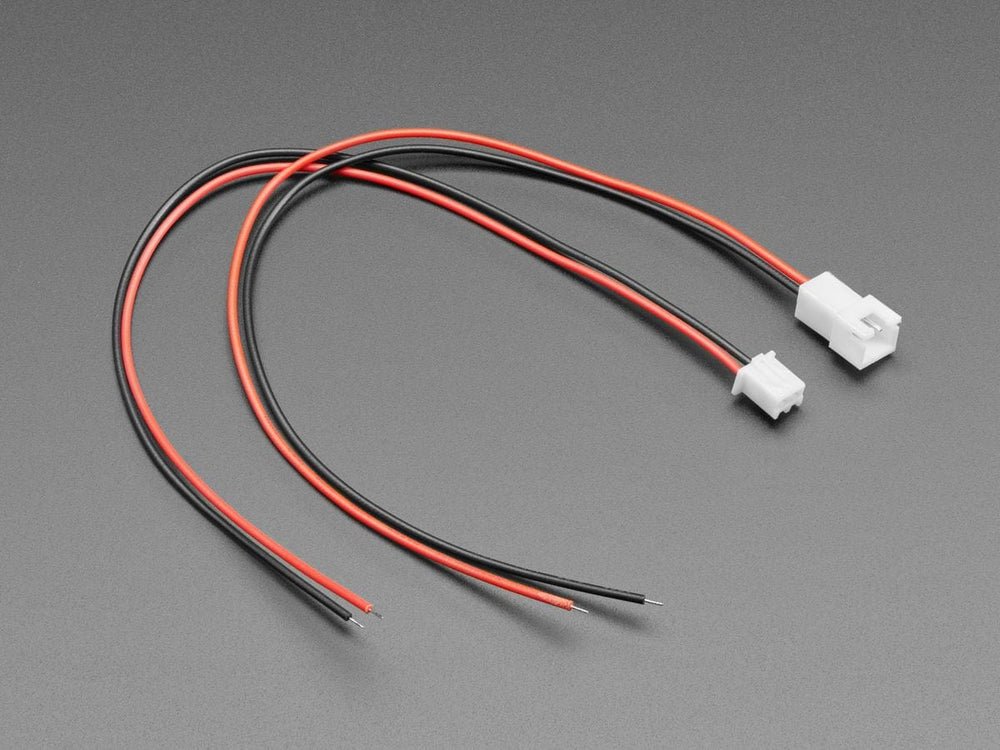

These solid 2.5mm pitch connector cable pairs are great when you need something that can carry a couple amps of current, easy to connect and disconnect, and is just-about 0.1″ pitch compatible.

These cables are nice and long, 20 cm each, in fact. They’ve got both small form factor and are a matching set, with an inline socket and plug connector. The two friction lock to make easy-breezy connections whenever you need light and small connectivity.

The two cables match with each other and with any JST XH compatible connectors. Wires are stranded 26 AWG.

Important: There appears to be no standard to JST-style wire connectors, some batches will have the red and black wires in a different order. ALWAYS check polarity before using! You can easily swap the wires with a pin if required.

We carry a few different pin configurations for JST XH cables and connectors.

Technical Details

• Length (including connectors): approx 20cm each
• 26 AWG wires
• Connector Pitch: 2.5mm
• All about JST XH connectors
• Product Dimensions: 200.0mm x 7.5mm x 6.5mm / 7.9″ x 0.3″ x 0.3″
• JST XH Connector Datasheet
