Description

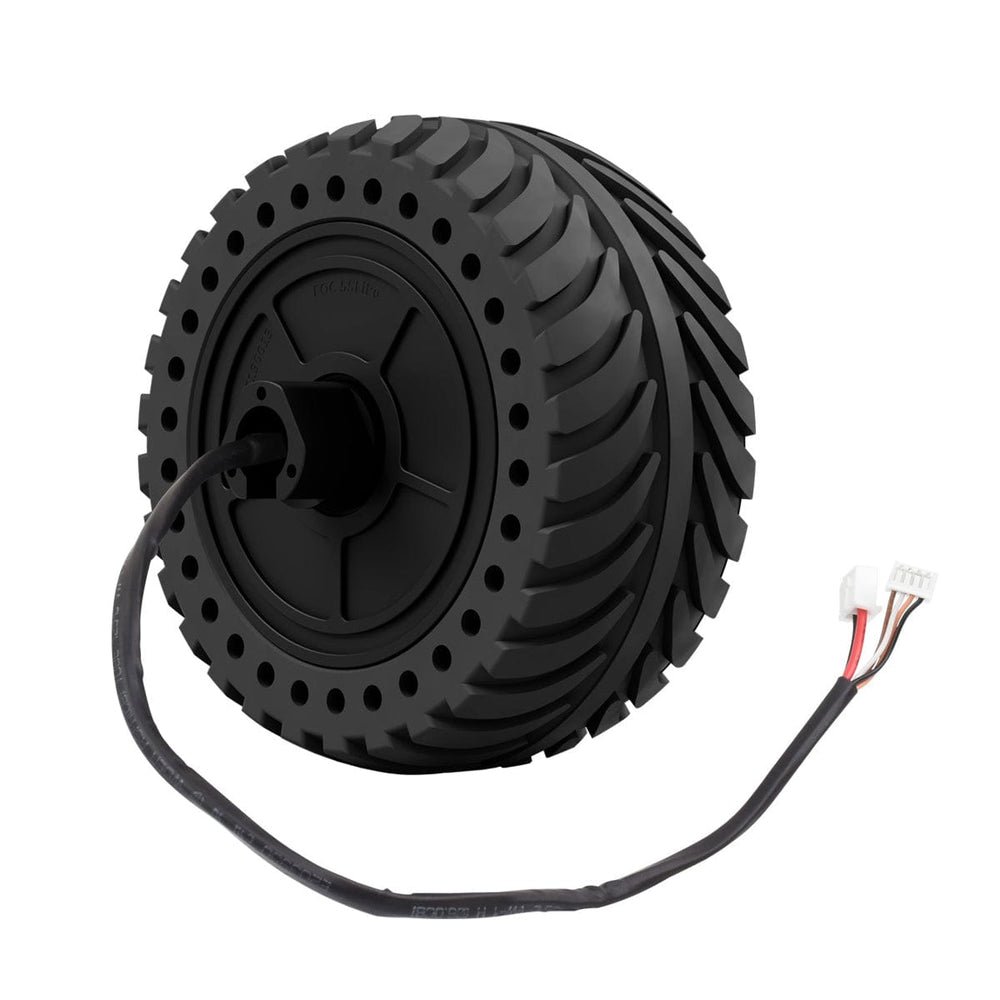

The DDSM115 is a direct-drive servo motor made for easy and solid motion control. Its direct-drive mechanism provides a fast response without delays, making it ideal for projects needing precise control.

It has multiple operating modes, including current loop, position loop, and velocity loop. The design gives the motor smooth torque, steady speed, and accurate positioning without requiring an external reducer. Its speed can go as low as 1 RPM and can provide torque up to 2Nm.

The DDSM115 has a hall sensor to detect and measure the proximity, position, and speed of the motor. Only a one-channel RS485 bus is required to control multiple direct-drive servo motors at the same time. Its IP54 protection rating guards against dust and water, which lets the motor work nicely in conditions that can get a bit messy!

If you’re looking for a driver board to get this motor running, click here to find one in our shop

We also have a DDSM210 and DDSM400 in the shop.

Other motors and the robot are NOT included

Features

• Low noise
• High precision and zero-backlash
• Fast response, direct drive without delay
• Integrated motor and driver, compact structure and high integration
• Support RS485 communication mode
• Motor feedback information such as position, speed, current, error code, etc. can be obtained through communication.
• Hall position detection, over-current protection, etc.
• Support electric brake
• No drive mechanical friction, drive efficiency close to 100%

Specifications

No-load Speed	200??10rpm
No-load Current	?Q0.25A
Rated Speed	115rpm
Rated Torque	0.96Nm
Degree of protection	IP54
Locked-rotor Torque	2.0Nm
Locked-rotor Current	?Q2.7A
Rated Voltage	18V DC (5S LiPo)
Torque Constant	0.75Nm/A
Speed Constant	11.1rpm/V
Operating Temperature	-20~45??
Total Weight	765??15g
Encoder Resolution	4096
Rated Current	1.25??0.05A
Noise Level	?Q50dB
Mechanical Time Constant	30ms
Rotor Inertia	1.67kg-m2
Phase Resistive Elements	2.15??
Phase Inductance	3.6mH
Number of Pole Pairs	10

Resources

• Product Wiki

Package Contents

• 1x DDSM115
• 1x ZH1.5 4-pin Signal Cable
• 1x XH2.54 2-pin Power cable
