Description

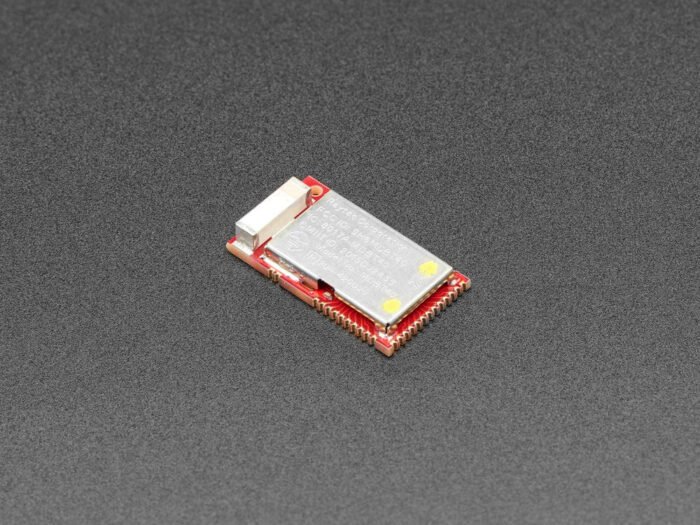

If you have a custom PCB design and you’d like to add a little Bluetooth Low Energy, this module is ultra compact and easy to use. It contains a Nordic nRF51822 Cortex M0 chip that comes integrated with BLE radio as well as most of the supporting circuitry and even a chip antenna. The whole thing is in a tin and comes with FCC, CE and TELEC certifications.

Please note! The module comes with a blank chip – this is for people who are comfortable programming the chips themselves with a J-Link programmer and the Nordic SDK. We don’t provide any firmware to go along with it!

If you’d like to see a possible reference design for this module, check out the PCB files for our Bluefruit UART Friend

This is the same chip as the micro:bit, so there is micropython support as well as some basic Arduino support. Either way you go (SDK/micropython/Arduino) you’ll still need to solder this onto a PCB and load code via a SWD programmer.

Technical Details

• 32-bit ARM? Cortex? M0 CPU
• Supply: 1.8V ?C 3.6V
• Memory: 256kB Flash Memory
• RAM: 32kB
• Tx Power: +4 dBm @ 16mA
• Rx Sensitivity: -93 dBm @ 13mA
• Flexible and configurable 31 GPIO
• Interfaces: UART / I2C / SPI / PWM
• One 32 bit and two 16 bit timers with counter mode
• SPI Master / Slave
• Two-wire Master (I2C compatible)
• UART (CTS/RTS)
• CPU independent Programmable Peripheral Interconnect (PPI) . Quadrature Decoder (QDEC)
• AES HW encryption
• Real Timer Counter (RTC)
• Operating Temp: -40??C to +105??C
• Raytac’s product page

Product Dimensions: 18.0mm x 10.0mm x 2.9mm / 0.7″ x 0.4″ x 0.1″

Product Weight: 0.9g / 0.0oz
