Description

This board comes with an Xtensa 32-bit LX7 dual-core processor that operates up to 240MHz and has 16MB Flash, 8MB PSRAM and an?SD card slot. It supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE) with an antenna, and you’ll find?UART, I2C and GPIO connections on the board with a?USB-C port?for power.

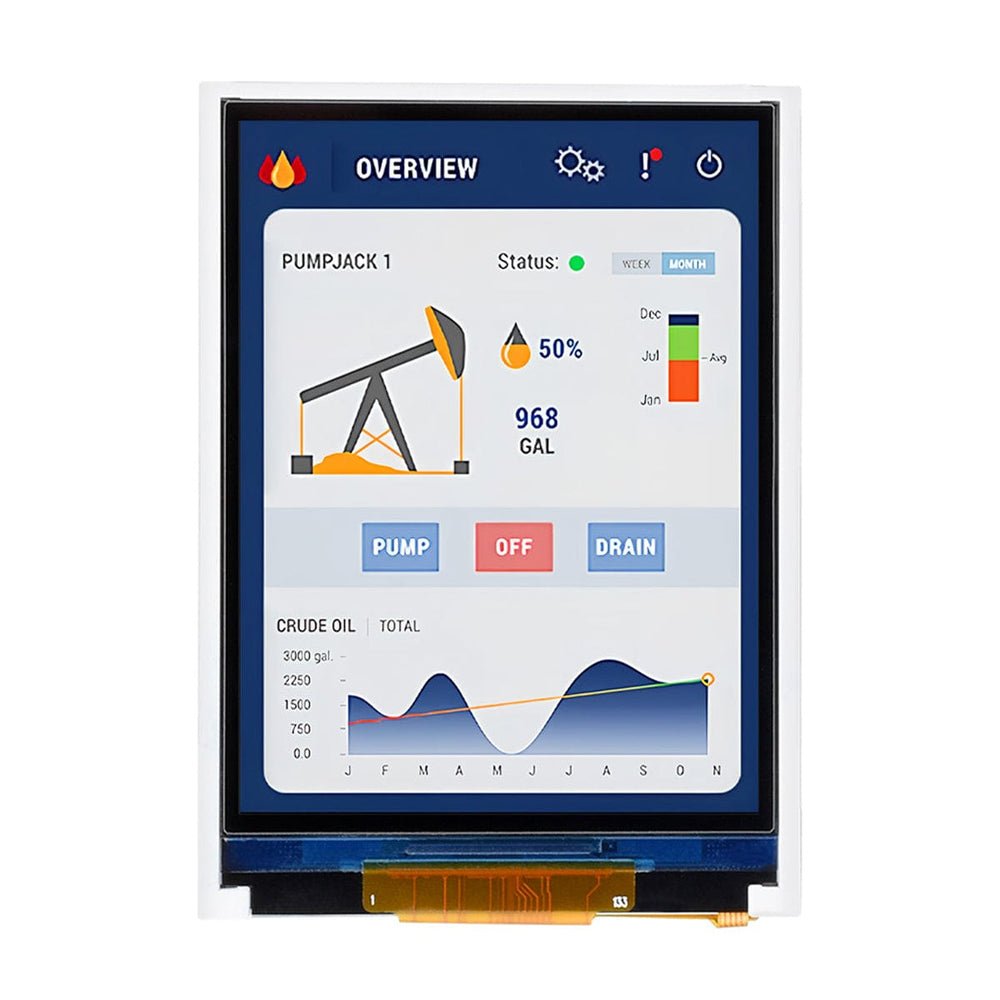

On the back of the board, you’ll find a colourful 2.8″ IPS display with 262K colours, a wide viewing angle and a 240 x 320 resolution. There is also an MX1.25 2-pin connector for a 3.7V lithium battery,?an?RTC battery connector, and 2W 20 x 30 speakers are included.

Click here for the touchscreen version.

Please note:?this board uses a tiny?MX1.25?connector for LiPo power.?Most LiPo batteries on the market (including ours) use a larger JST fitting. We do not yet stock batteries with an MX1.25 connector, however, you can customise your battery with?one of our 1.25mm pitch cables to make a compatible battery yourself (assuming you have the ability, knowledge and tools to do this safely). If you want to source your own battery to fit inside the case, a battery size of 3.85 x 24 x 28 mm is recommended.

Features

• Equipped with high-performance Xtensa 32-bit LX7 dual-core processor, up to 240MHz main frequency
• Supports 2.4GHz Wi-Fi (802.11 b/g/n) and Bluetooth 5 (LE), with onboard antenna
• Built-in 512KB SRAM and 384KB ROM, with onboard 16MB Flash and 8MB PSRAM
• 2.8″ LCD display, 240 x 320 resolution, 262K colour
• Adapting UART, I2C and some IO interfaces, full-speed USB port
• Speaker, QMI8658 6-axis sensor, RTC sensor, TF card slot and battery recharge management module, etc
• Supports accurate control such as flexible clock and multiple power modes to realise low power consumption in different scenarios

What’s on Board

1. ESP32-S3R8
   Dual-core processor, up to 240MHz operating frequency
2. 16MB Flash
3. QST attitude sensor
   QMI8658C (6-axis IMU includes a 3-axis gyroscope and a 3-axis accelerometer)
4. RTC chip
   PCF85063 RTC chip
5. PCM5101 audio decoder
6. Amplifier chip
7. Volume adjustment knob
8. Battery recharge manager
9. ME6217C33M5G
   Low dropout regulator, 800mA output (Max.)
10. Onboard ceramic antenna
11. IPEX1 connector and switching resistor
    Switching to use an external antenna via resoldering the resistor
12. TF card slot
    Supports TF cards up to 16GB
13. Battery power supply control button
    A relevant driver program is required
14. RESET button
15. BOOT button
16. USB Type-C port
17. 12PIN multi-functional pin header
18. I2C header
    Connecting with internal chip, only supports the I2C peripherals and cannot be mapped to other functions
19. UART header
20. MX1.25 battery header
    MX1.25 2PIN connector, for 3.7V Lithium battery, supports charging and discharging
21. RTC battery header
    for connecting rechargeable?RTC battery
22. Speaker header
    Comes with 8?? 2W 2030 speaker
23. Power indicator
24. Charge indicator
    Lithium battery charge indicator lights up when charging, and off when fully charged (the light status is uncertain when the battery is not connected)

Resources

• Product Wiki

Package Contents

• 1x ESP32-S3 2.8″ Capacitive Touch Display
• 1x SH1.0 12-pin Cable -100mm
• 2x SH1.0 4-pin Cable -100mm
• 1x 20 x 30mm Speaker
