Description

What is this TRS bit? Turtle Rock Studios? Transmission Raman Spectroscopy? Not quite, more like Tip-Ring-Sleeve.

This nifty, gold-plated connector is known by many names, phone plug, phone jack, headphone jack, jack plug, etc. Used to transmit stereo audio signals, these connectors are a mainstay in audio equipment, especially speakers and microphones. For audio, tip is left channel, and ring is right channel, and the sleeve is ground.

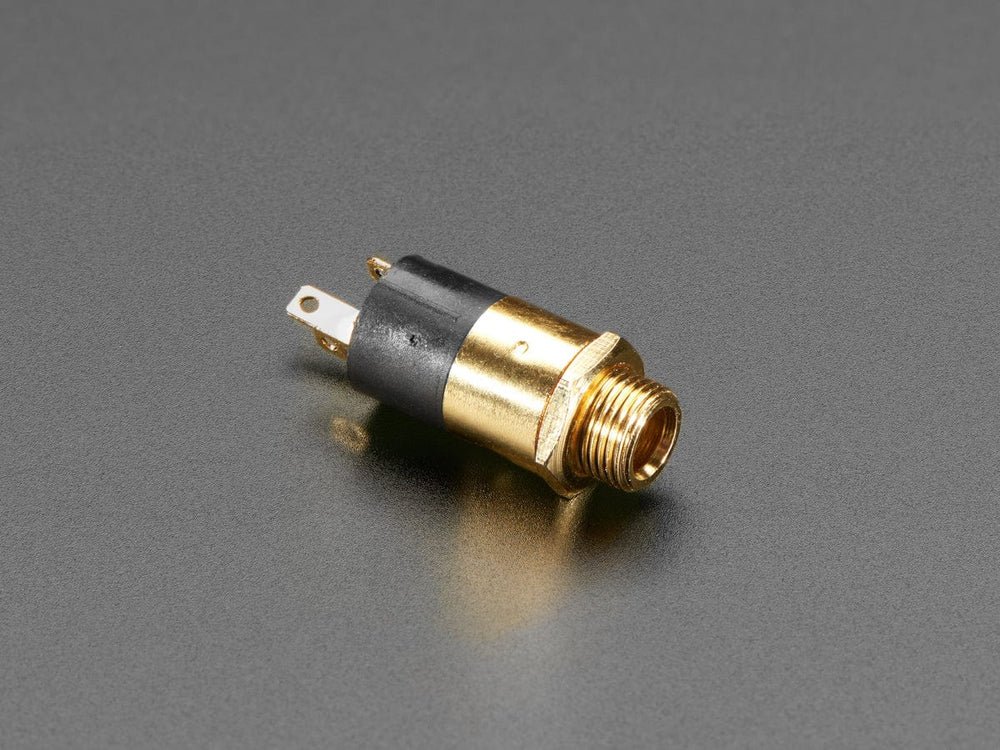

Each jack comes with a slim, gold-plated body with three contacts to solder to and a panel mounting hex-nut.

TRS jack connectors don’t have to be used only for audio! They make great general-purpose connectors where you need 2 or 3 signals and cheap, common cables. For example, in accessibility tech, these are often used to connect buttons or low voltage actuators.

Technical Details

• Approximate dimensions: 7/8″ long x 3/8″ diameter
• Gold plated for superior connection
• Ideal for chassis or panel mounting
• Completely sealed jack, non-switching
• Mounts in 1/4″ hole in panels up to 0.075″ thick, comes with matching hex-nut

Product Weight: 2.0g / 0.1oz
