Description

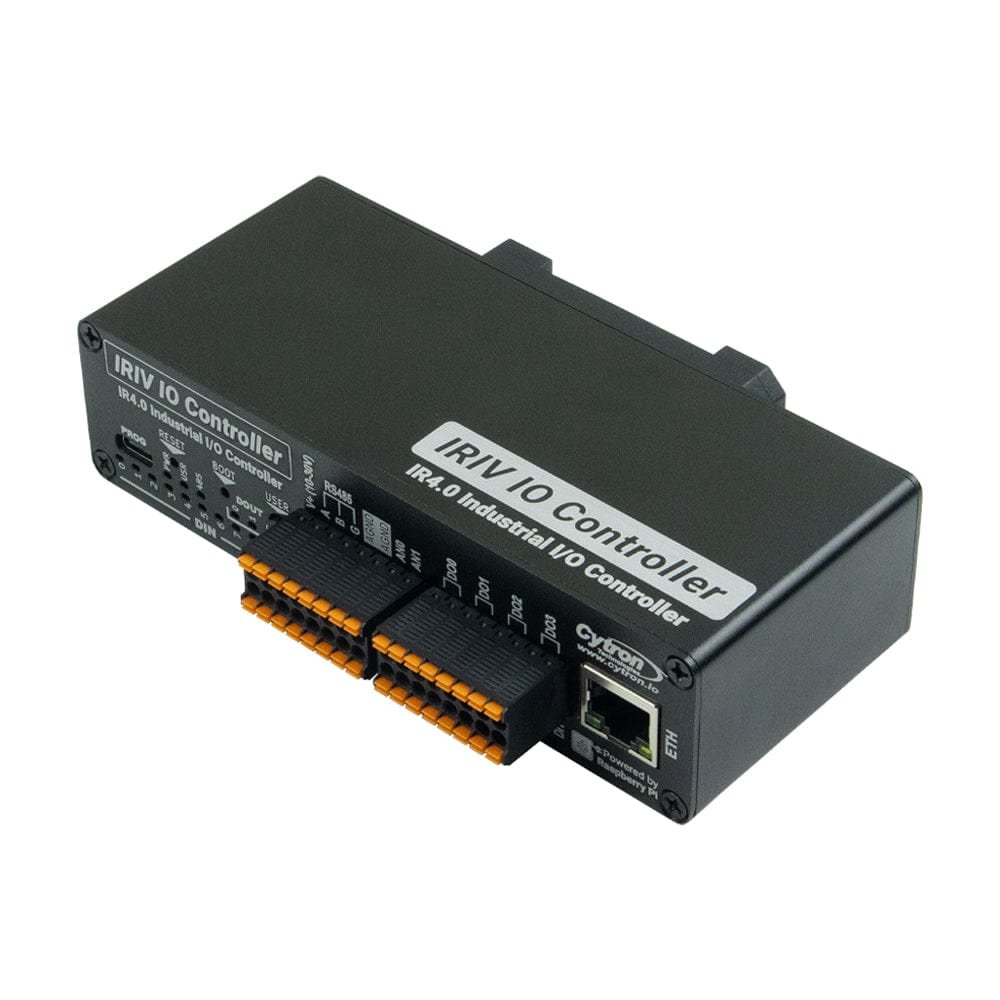

The IRIV IO Controller is an industrial-grade device designed to make automation tasks a lot easier. Powered by the?Raspberry Pi RP2350 microcontroller, it is faster, safer and more efficient than its older versions. This controller can be an I/O expander, data gatherer, network gateway, or automation controller.?

It has 11 isolated digital inputs, 4 isolated digital outputs, and 2 analogue inputs, including a USB-C port for programming and configuration and an RJ45 Ethernet port powered by the W5500 Ethernet controller, giving you many different options for a variety of industrial projects.

The metal casing with a fanless design is DIN rail mountable, providing easy installation. The IRIV IO Controller integrates easily with the IRIV PiControl. You can use IRIV PiControl as your main system controller while using IRIV IOC to gather your data or monitor your machinery and automation.

Features

Microcontroller	Raspberry Pi RP2350A, Dual Cortex-M33 @ 150MHz
RAM	520KB on-chip SRAM
Storage	2MB Flash Memory
Connectors	1x USB-C (For programming and configuration)
	1x RJ45 Ethernet (via W5500 Ethernet controller)
	1x Isolated RS485
	11x Isolated digital input (up to 50V)
	4x Isolated digital output (up to 50V)
	2x 12-bit analogue input (0 – 10.56V / 0 – 42.58mA)
Power Supply	DC 10-30V surge-protected
Additional Features	PCF85063A Real Time Clock
	1x Reset button 1x boot button & 1x programmable button
	1x Programmable LED
	Status LED for Power, RS485, DIN & DOUT
	1x Passive Buzzer
Case	Metal Case, fanless design, DIN rail mountable
Dimensions	(L)140mm x (W)60mm x (H)36mm (metal case only, excluding DIN socket & connectors)

What’s on Board

PCBA Diagram

Specifications

Parameters		Min	Max	Unit
Power Input Voltage	Terminal 1 (Surge Protected up to 60V 20ms)	10	30	VDC
	USB-C	4.9	5.2	VDC
Power Consumption		–	0.7	W
Isolated Digital Input	Low Level (VIL)	–	??0.8	V
	High Level (VIH)	??3	??50	V
	Maximum Pulse Frequency (50% Duty Cycle)	–	5000	Hz
	Isolation Voltage	3750		Vrms
Analogue Input	Resolution	12		bit
	Voltage Mode	0	10.56	V
	Current Mode	0	42.58	mA
	Input Impedance (Voltage Mode)	32K		?
	Input Impedance (Current Mode)	248		?
Isolated Digital Output	Voltage	–	50	V
	Current	–	500	mA
	Isolation Voltage	1500		Vrms
Isolated RS485	Maximum Baud Rate	500		kbps
	Isolation Voltage	5000		Vrms
Operating Temperature		-20	70	??

Resources

• IRIV IOC Datasheet
• IRIV IOC Block Diagram
• IRIV IOC PCBA Layout Diagram
• IRIV IOC 3D CAD Models
• IRIV IOC Example Code
• RP2350 Datasheet?(pdf), by Raspberry Pi
• CircuitPython Manual Page
• MicroPython Manual Page
• SDK C/C++, from Raspberry Pi

Pinout

Package Contents

• 1 x IRIV IO Controller
• 1 x Mini Flat Screwdriver
