Description

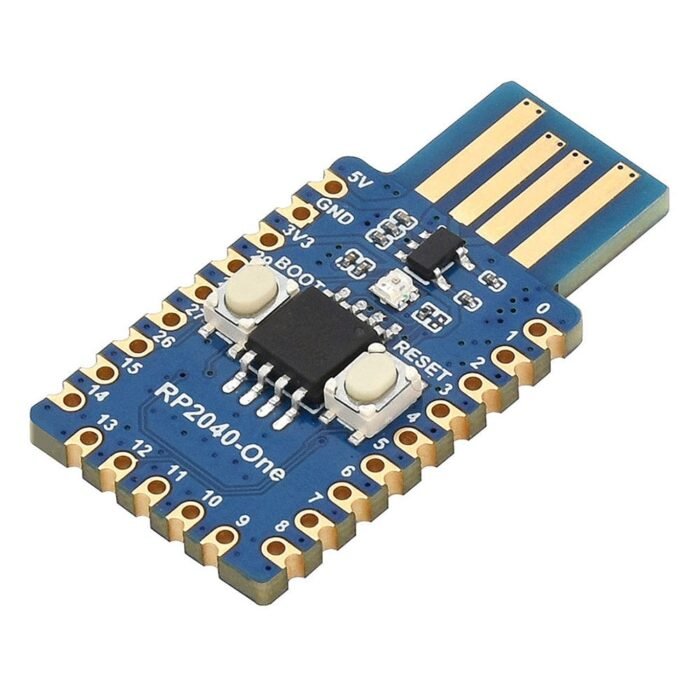

This is the Waveshare RP2040-One, a development board based on the RP2040/Raspberry Pi Pico with a USB-A plug for connecting directly to your PC for programming!

The board includes 4MB onboard flash memory and comes with the usual great RP2040 features you’d expect from similar boards like the Raspberry Pi Pico, and runs the same programming languages including MicroPython and C/C++.

Waveshare has added a few handy features to this board, including a WS2812 RGB LED (tied to GPIO 16), additional GPIO pins broken out to solder pads, and BOOT/RESET buttons for your convenience.

What’s Onboard

1) PCB USB-A port
2) RT9013-33GB
?- 500mA low dropout, low noise, ultra-fast LDO
3) WS2812
?- RGB LED
4) BOOT button
?- Press it when resetting to enter download mode
5) W25Q32JVSSIQ
?- 4MB NOR-Flash
6) RESET button
7) RP2040
?- Dual-core processor, up to 133MHz operating frequency
8) RP2040 pins
?- 10x solder points, including 9x GPIO pins

Specifications

• RP2040 microcontroller chip designed by Raspberry Pi
• Dual-core Arm Cortex M0+ processor, flexible clock running up to 133 MHz
• 264KB of SRAM
• 4MB onboard Flash memory
• Castellated module allowing soldering directly to carrier boards
• USB 1.1 with device and host support
• Low-power sleep and dormant modes
• Drag-and-drop programming using mass storage over USB
• 29x multi-function GPIO pins:
  • 20x via edge pinout?(others via solder points)
  • 2x SPI
  • 2x I2C
  • 2x UART
  • 4x 12-bit ADC
  • 16x controllable PWM channels
• Accurate clock and timer on-chip
• Temperature sensor
• Accelerated floating-point libraries on-chip
• 8x Programmable I/O (PIO) state machines for custom peripheral support

Resources

• Product Wiki
• Schematic
• Overall dimensions: 35.50mm x 18mm

Package Contents

• 1x?RP2040-One development board
