Description

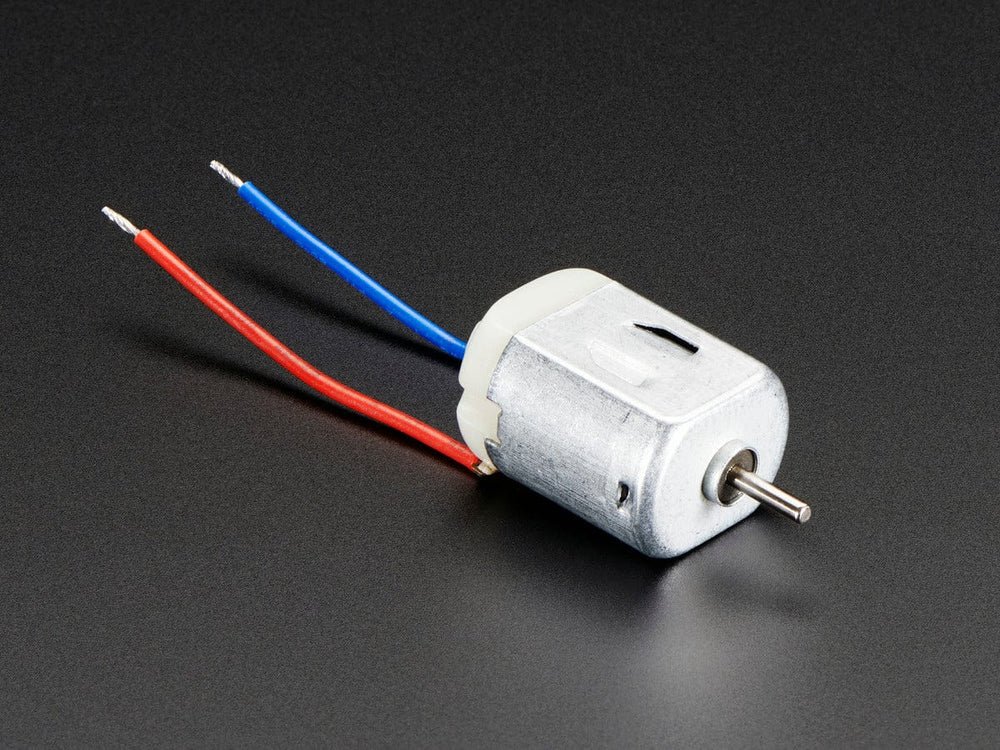

These are standard ‘130 size’ DC hobby motors. They come with a wider operating range than most toy motors: from 4.5 to 9VDC instead of 1.5-4.5V. This range makes them perfect for controlling with an Adafruit Motor Shield, or with an Arduino where you are more likely to have 5 or 9V available than a high current 3V setting. They’ll fit in most electronics that already have 130-size motors installed and there’s two breadboard-friendly wires soldered on already for fast prototyping

Check the Technical Details tab for more detailed information!

Technical Details

• Operating Temperature: -10??C ~ +60??C
• Rated Voltage: 6.0VDC
• Rated Load: 10 g*cm
• No-load Current: 70 mA max
• No-load Speed: 9100 ??1800 rpm
• Loaded Current: 250 mA max
• Loaded Speed: 4500 ??1500 rpm
• Starting Torque: 20 g*cm
• Starting Voltage: 2.0
• Stall Current: 500mA max
• Body Size: 27.5mm x 20mm x 15mm
• Shaft Size: 8mm x 2mm diameter
• Weight: 17.5 grams
