Description

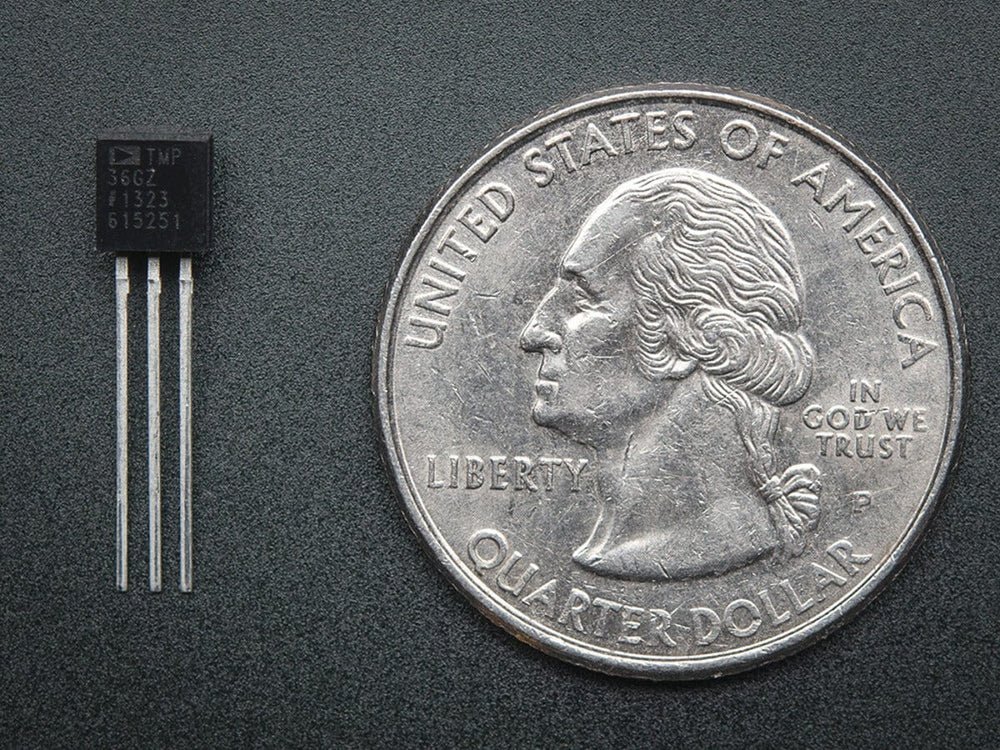

Wide range, low power temperature sensor outputs an analog voltage that is proportional to the ambient temperature. To use, connect pin 1 (left) to power (between 2.7 and 5.5V), pin 3 (right) to ground, and pin 2 to analog in on your microcontroller. The voltage out is 0V at -50??C and 1.75V at 125??C. You can easily calculate the temperature from the voltage in millivolts: Temp ??C = 100*(reading in V) – 50
See the webpage for datasheets and more information.
For a full tutorial with wiring diagrams, Arduino and CircuitPython code examples and project ideas, please read the TMP36 temperature sensor tutorial page!
Technical Details
Dimensions:
- Length: 3.5mm / 0.14″
- Width: 4.6mm / 0.18″
- Height: 19mm / 0.74″
- Weight: 0.2g
Additional information
| Weight | 0.2 kg |
|---|
