Original Gravity: Digital Capacitive Touch Sensor For Arduino - PartsCountry

Original price was: $20.51.Current price is: $11.51.

44% Off

Categories:

Free worldwide deliveries

48h Customer Service Offered

Money Safety guarranteed

Credit card accepted

Description

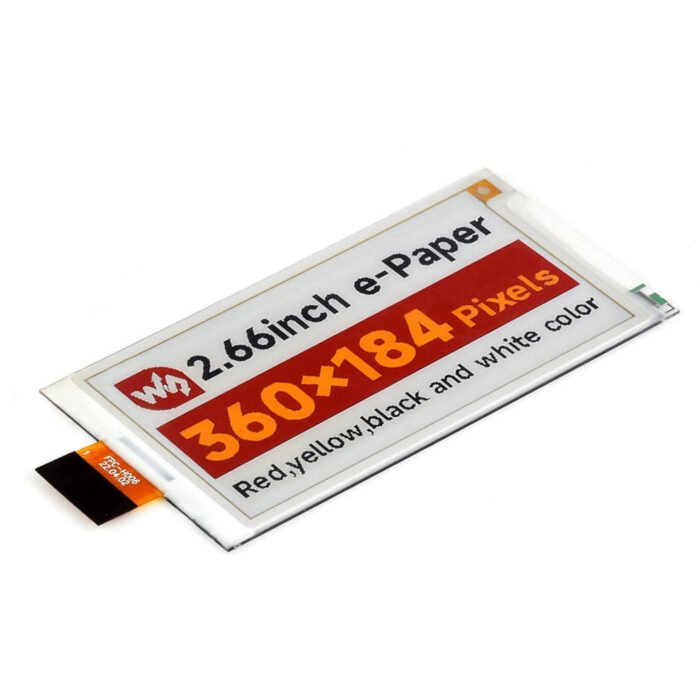

This raw display has a 360 x 184 resolution with red, yellow, black, and white for a sharp and colourful display. It uses SPI communication for data transfer and offers a wide viewing angle of 170??. This energy-efficient display does not require a backlight, maintaining visibility of the last content shown for an extended period even without power. Its low power consumption is primarily needed only during refreshes. It supports Raspberry Pi, Jetson Nano, Arduino, and STM32, with online resources and a manual provided for easier integration.

Note:?This comes with the screen only! This does NOT come with a?controller PCB

Features

  • 360 x 184 Resolution
  • 170?? Viewing Angle
  • Red/Yellow/Black/White Display Colour
  • Grey Scale 2
  • Passively Reflective Display Type
  • No backlight, keeps displaying last content for a long time even when powered down
  • Ultra-low power consumption, basically power is only required for refreshing
  • Comes with online development resources and manual (examples for Raspberry Pi/Jetson Nano/Arduino/STM32)

Specifications

Dimensions 2.66″
Driver Board Dimensions 85mm x 38.5mm
Display Dimensions 60.05mm x 30.69mm
Outline Dimensions (screen only) 72.59 x 37.11 x 1mm
Operating Voltage 3.3V / 5V (IO level should be consistent with the power supply)
Communication Interface SPI
Dot Pitch 0.1668 x0.1668mm
Resolution 360 x 184
Display Colour Black, White, Red, Yellow
Grey Scale 2
Refresh Time 26s
Refresh Power <50mW (typ.)
Standby Current < 0.01uA (almost 0)

Resources

  • Product Wiki
  • User Manual
  • Schematic

Package Contents

  • 1x 2.66″ E-Paper Raw Display

Additional information

Weight 0.2 kg
