Description

The Single Pole Double Throw (SPDT) relay is useful in certain projects because it has one common terminal and two contacts, making it ideal for selecting between two options.

This SPDT Relay includes four SPDT switches and only requires low-voltage and low-current signals to control them. You can use a 5V DC signal to manage up to 250V AC or 110V DC. Additionally, its I2C address is adjustable, allowing you to use multiple relay modules in the same project.

For a single SPDT Relay, click here to find it in our shop

Features

• High-temperature resistant plastic shell
• High voltage load
• Low power consumption
• Long-Lasting
• 128 Optional I2C address
• Product Number: Seeed 103020133

Specifications

Working Voltage	5V
Nominal Coil Current	89.3mA
TUV Certification Load	10A 250VAC/ 10A 30VDC
UL Certification Load	10A 125VAC 28VDC
Max. Allowable Voltage	250VAC/110VDC
Power Consumption	abt. 0.45W
Contact Resistance	100m?? Max.
Insulation Resistance	100M?? Min. (500VDC)
Max. ON/OFF Switching	30 operation/min
Ambient Temperature	-40??C to +85??C
Operating Humidity	45% to 85% r.h.
Contact Material	AgCdO
Input Interface	I^2^C
Default I^2^C Address	0x11 or 0x12
Available I^2^C Address	0x00 – 0x7F
Output Interface	3 Pins DIP Female Screw Terminal-Green

Resources

• Product Wiki
• Eagle Files
• Arduino Library

Pinout

Package Contents

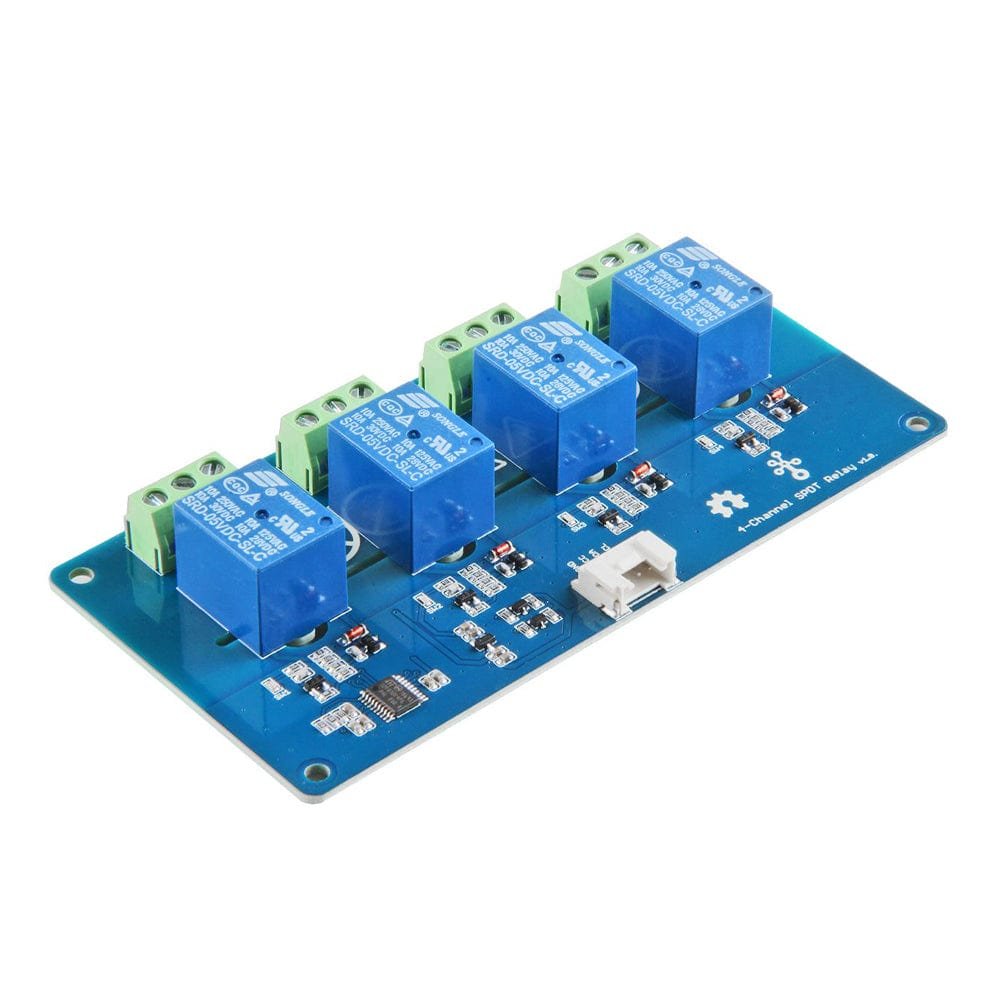

• 1x Grove – 4-Channel SPDT Relay
• 1x Grove Cable
• 1x Acrylic Case
• 1x A bag of Nylonl Nuts, Studs and Bolts
