Description

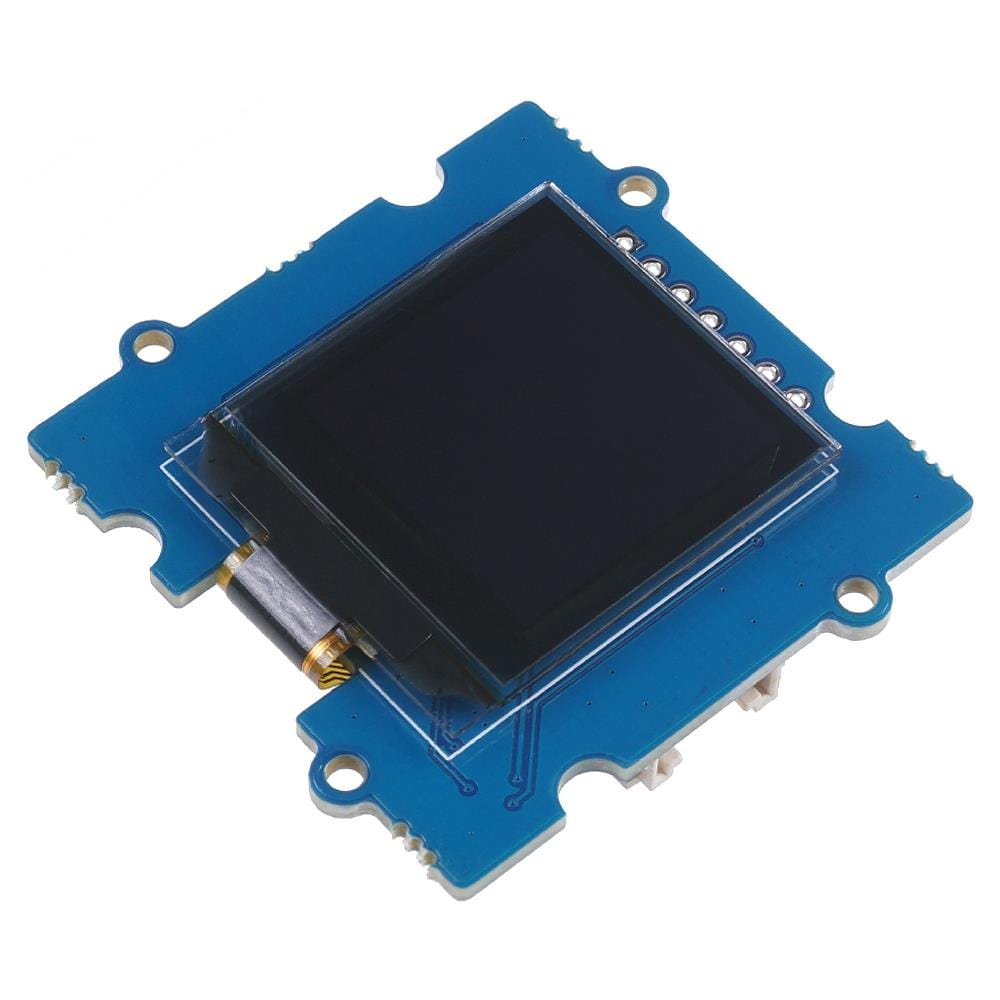

The Seeed Grove – OLED Display 1.12 V3.0 (SH1107) is a monochrome display with 128×128 resolution. Compared with LCDs, there are many advantages of an OLED (Organic Light Emitting Diode) like self-emission, high contrast ratio, slim/thin outline, wide viewing angle and low power consumption. The display works on both 3.3V and 5V supply voltage.

You can use either the I2C or SPI interface to light up the display with your microcontroller to display words, images, and whatever you want. SPI offers faster images reaction which brings a better overall experience.

Thanks to suggestions from customers, we put the grove connector on the back. Such a user-friendly design helps easily hide the connecting wires and makes a pretty production display.

Features

• 3.3V/5V power supply compatible
• Changeable I2C address
• SPI available
• Low power consumption
• Monochrome 128??128 pixels
• High contrast, high brightness
• Wide operating temperature range: -40?? ~ +85 ??
• Grove connector hidden on the back
• Product number: Seeed?104020250

Specifications

Parameter	Value
Input voltage	3.3V / 5V
Output Voltage	0 ~ 2.3V
Pixels	128 x 128
Temperature Range	-40?? ~ +85 ??
Interface	I2C/SPI

Resources

• Product Wiki
• SH1107 datasheet
• Schematic files

Pinout

Pin	Function	Note	Cable colour
1	SCL	I2C Clock	Yellow
2	SDA	I2C Data	White
3	VCC	Power, 5V/3.3V	Red
4	GND	Ground	Black
